HT10-36N1Z Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 30.16"; Outer Diameter: 42.0"; Width (Thickness): ;

HT10-36N1Z
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Specifications
Part Number HT10-36N1Z
Maximum Allowable Gear Tooth Load (Fz) 21195lbs | 94.621KN
Moment Load Rating (Crm) 395700ft-lbs | 1766.518KN
Bearing Types Slewing Ring Bearing

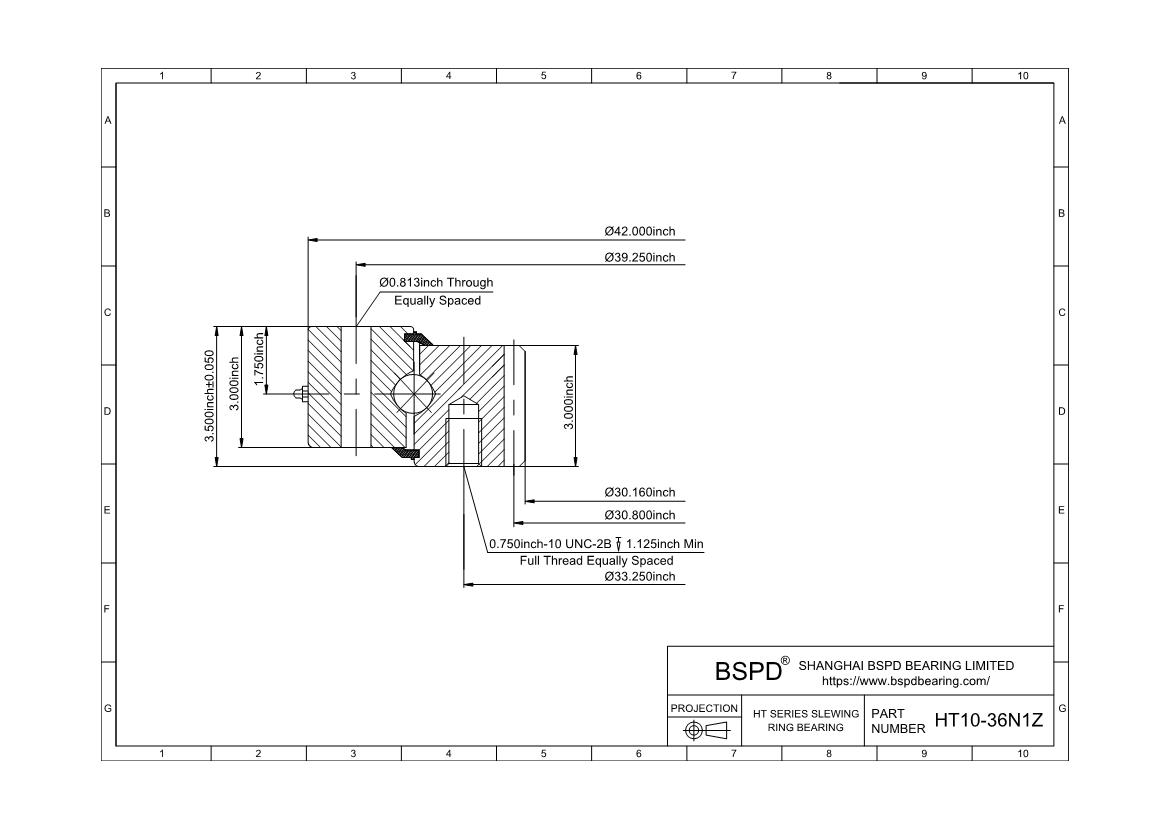

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 42" | 1066.8mm
Inside Diameter of Inner Ring (di) 30.16" | 766.06mm
Internal Diameter on Outer Ring (Di) -
External Diameter on Inner Ring (do) -
Approximate Weight (lbs) 517lbs | 234.506KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 39.25" | 996.95mm
Number Holes in Outer Ring (no) 28
Bolt Circle in Inner Ring (Li) 33.25" | 844.55mm
Number Holes in Inner Ring (ni) 32
Gear Data
Pressure Angle of Gear Teeth (α) 20°
Pitch Diameter (D2) 30.8"
Diametral Pitch (Pd) 2.5
Number of Teeth (z2) 77
HT10-36N1Z
