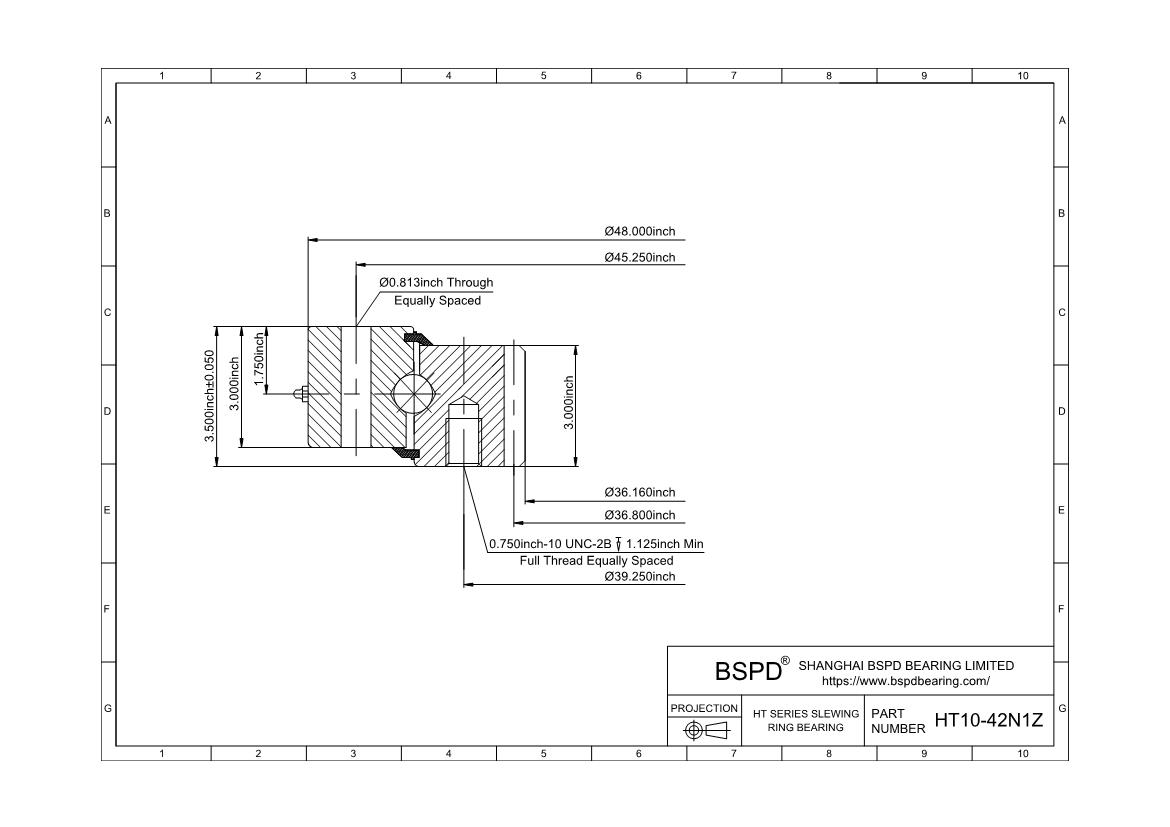

HT10-42N1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 36.16"； Outer Diameter: 48.0"； Width (Thickness): ;
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | HT10-42N1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 20819lbs | 92.942KN |
| Moment Load Rating (Crm) | 457000ft-lbs | 2040.179KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 48" | 1219.2mm |
| Inside Diameter of Inner Ring (di) | 36.16" | 918.46mm |
| Internal Diameter on Outer Ring (Di) | - |
| External Diameter on Inner Ring (do) | - |
| Approximate Weight (lbs) | 580lbs | 263.082KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 45.25" | 1149.35mm |
| Number Holes in Outer Ring (no) | 32 |
| Bolt Circle in Inner Ring (Li) | 39.25" | 996.95mm |
| Number Holes in Inner Ring (ni) | 36 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | 20° |
| Pitch Diameter (D2) | 36.8" |
| Diametral Pitch (Pd) | 2.5 |
| Number of Teeth (z2) | 92 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings HT10-42N1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
REQUEST FOR QUOTE
- Fast Delivery √
- Best Quality √
- Good Price √
