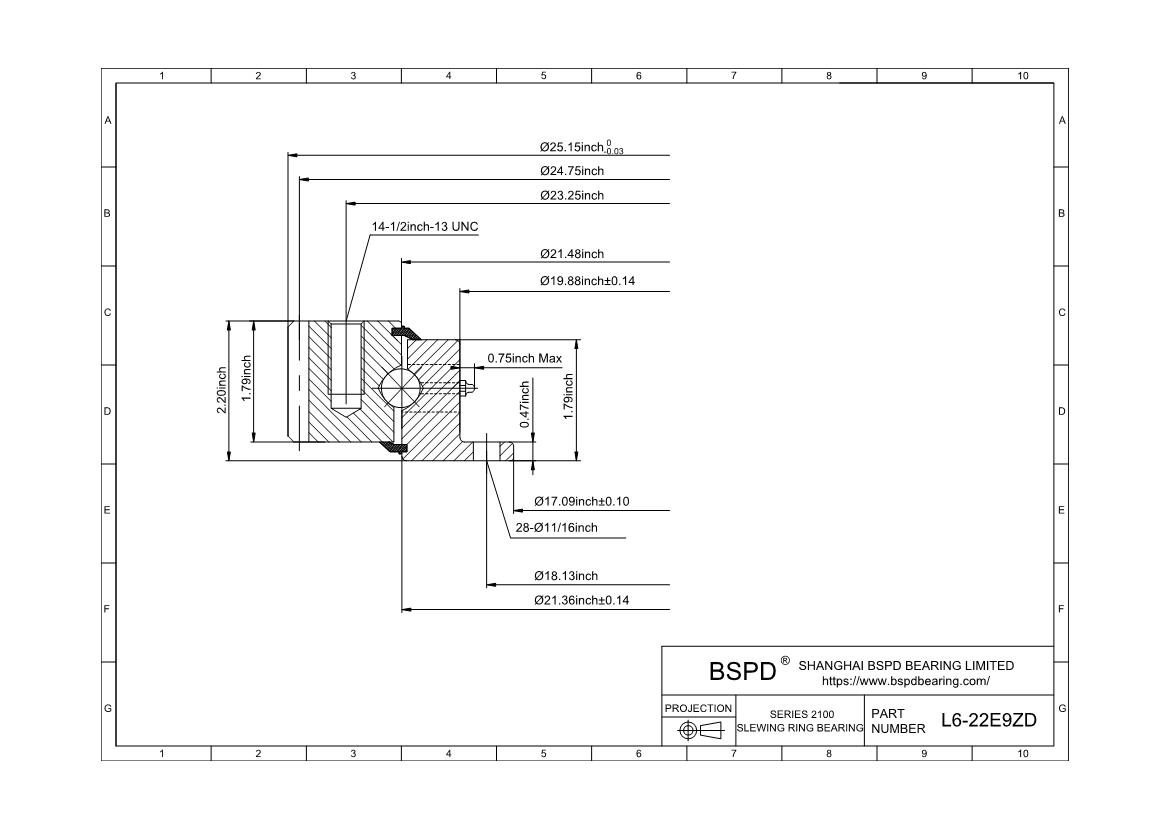

L6-22E9ZD Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 17.09"; Outer Diameter: 25.15"; Width (Thickness): 2.20";

L6-22E9ZD
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number L6-22E9ZD
Weight(lbs) 86
Outline Dimensions(inches)
OD 25.15
ID 17.09
IO 21.36
OI 21.48
IE 19.88
OE -
Mounting Holes
OBC 23.25
NO.Holes OBC 14
IBC 18.13
NO.Holes IBC 28
Gear Data
PD 24.75
DP20 Stub 4
NO of Teeth 99
Max.Tangential Toothload 5852
Mating Pinions P4-3.5D2
P4-4.25D2
L6-22E9ZD
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-22E9ZD ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
