L6-25P9Z Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 21.02"; Outer Diameter: 29.45"; Width (Thickness): 2.20";

L6-25P9Z
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number L6-25P9Z
Weight(lbs) 80

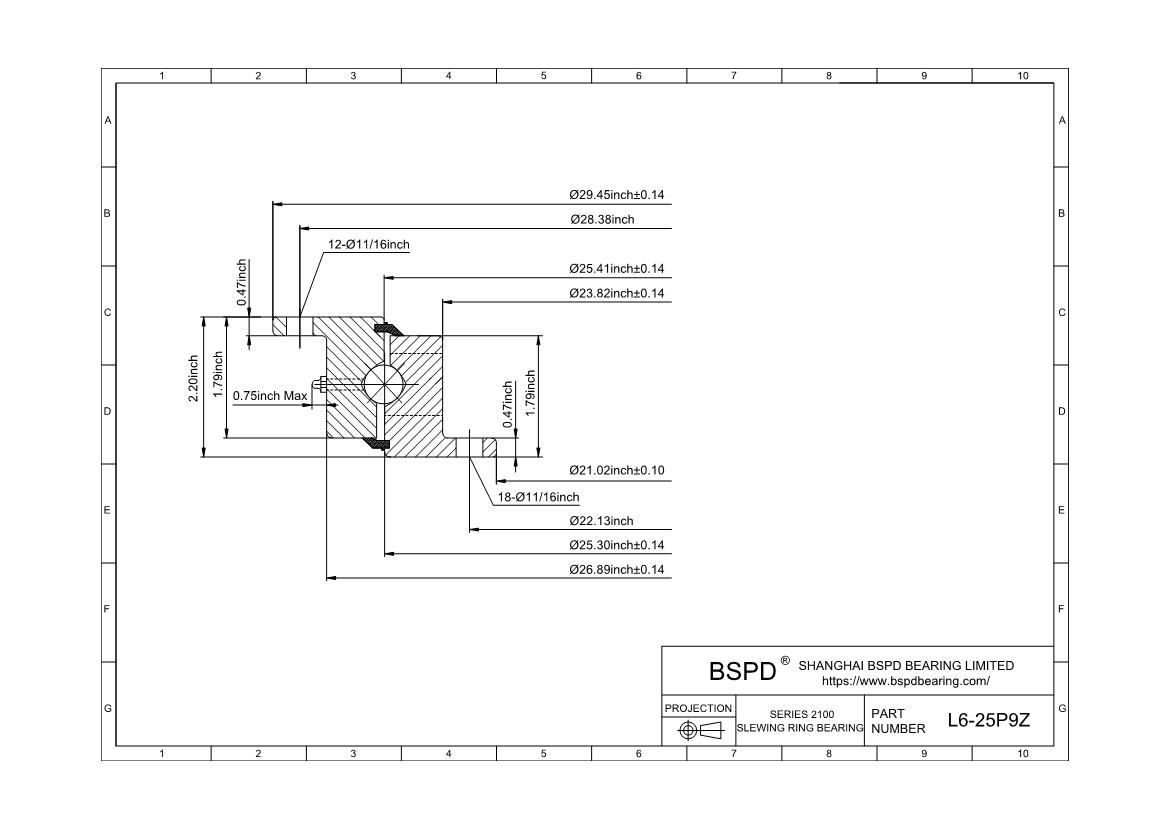

Outline Dimensions(inches)
OD 29.45
ID 21.02
IO 25.3
OI 25.41
IE 23.82
OE 26.89
Mounting Holes
OBC 28.38
NO.Holes OBC 12
IBC 22.13
NO.Holes IBC 18
Gear Data
PD
DP20 Stub
NO of Teeth
Max.Tangential Toothload
Mating Pinions P4-3.5D2
P4-4.25D2
L6-25P9Z
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-25P9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
