L6-29E9Z Inch Size Slewing Rings

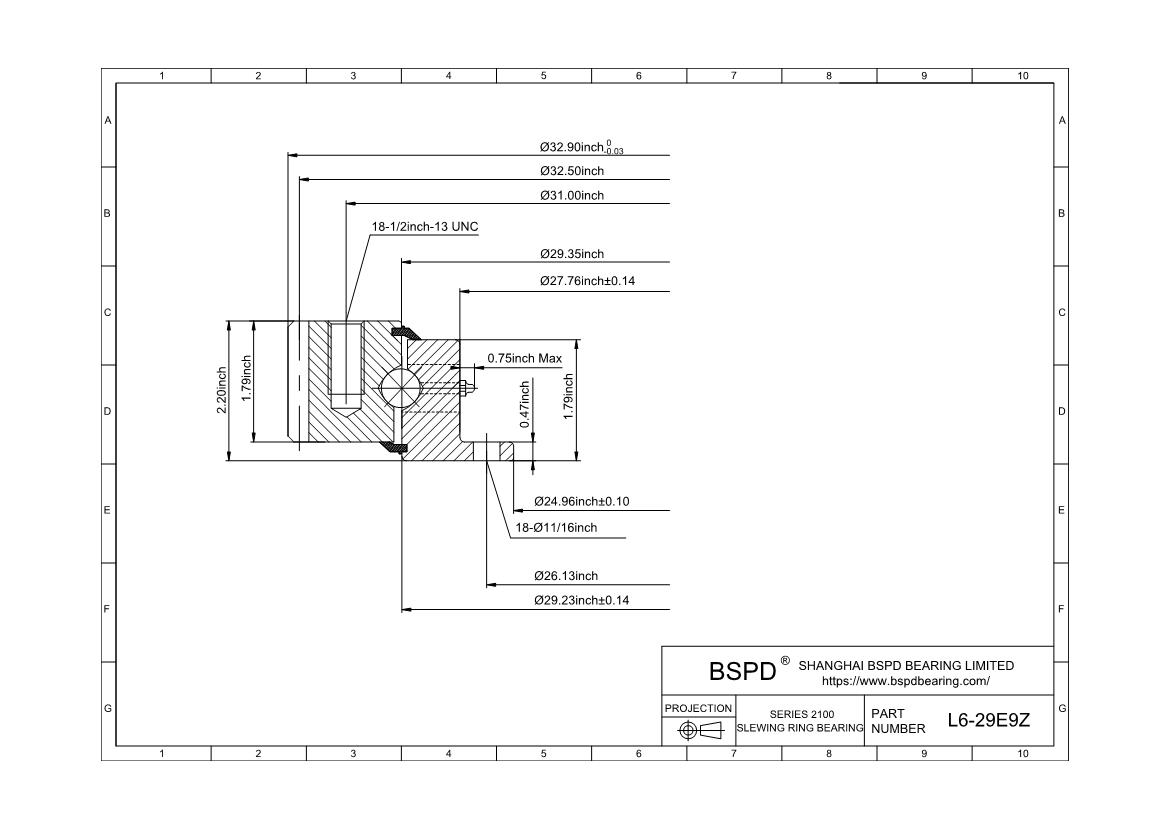

Dimensions: Bore (Inner) Diameter: 24.96"; Outer Diameter: 32.9"; Width (Thickness): 2.20";

L6-29E9Z
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number L6-29E9Z
Weight(lbs) 115
Outline Dimensions(inches)
OD 32.9
ID 24.96
IO 29.23
OI 29.35
IE 27.76
OE -
Mounting Holes
OBC 31
NO.Holes OBC 18
IBC 26.13
NO.Holes IBC 18
Gear Data
PD 32.5
DP20 Stub 4
NO of Teeth 130
Max.Tangential Toothload 5950
Mating Pinions P4-3.5D2
P4-4.25D2
L6-29E9Z
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-29E9Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
