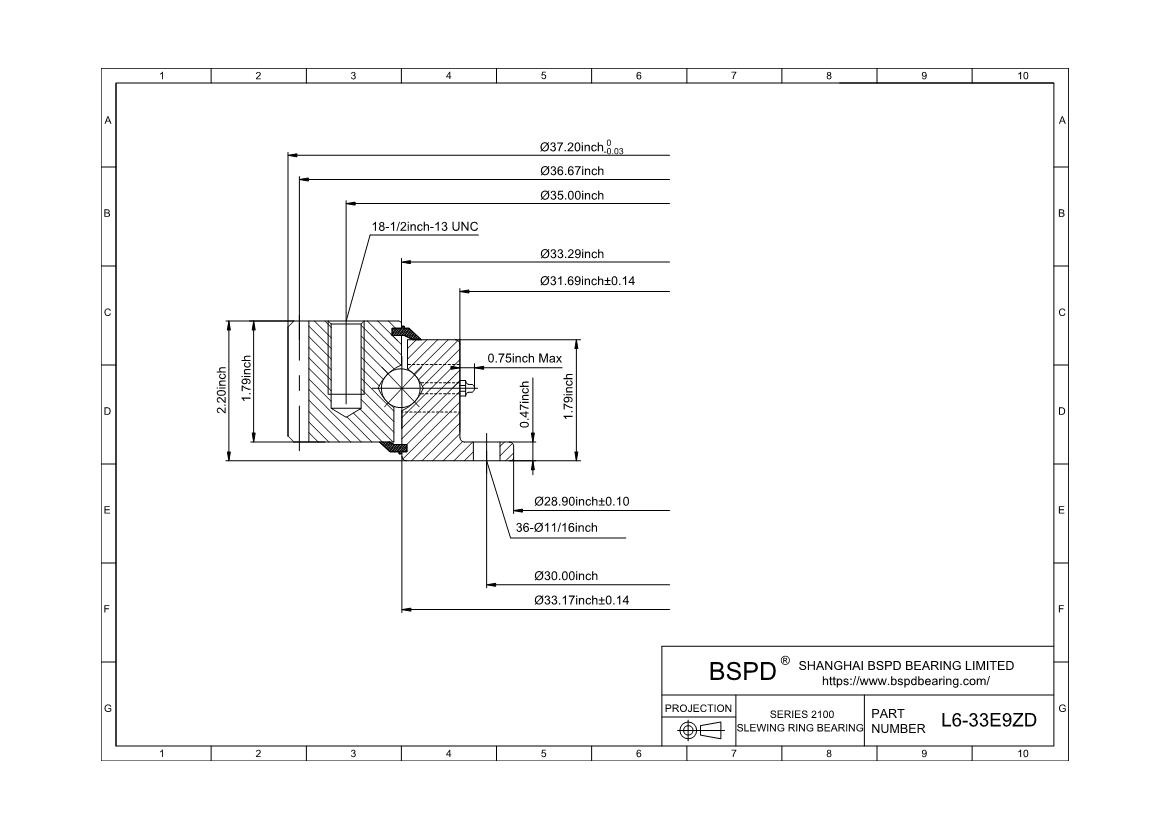

L6-33E9ZD
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 28.9"； Outer Diameter: 37.2"； Width (Thickness): 2.20";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | L6-33E9ZD |
| Weight(lbs) | 137 |
| Outline Dimensions(inches) | |
| OD | 37.2 |
| ID | 28.9 |
| IO | 33.17 |
| OI | 33.29 |
| IE | 31.69 |
| OE | - |
| Mounting Holes | |
| OBC | 35 |
| NO.Holes OBC | 18 |
| IBC | 30 |
| NO.Holes IBC | 36 |
| Gear Data | |
| PD | 36.67 |
| DP20 Stub | 3 |
| NO of Teeth | 110 |
| Max.Tangential Toothload | 7840 |
| Mating Pinions | P3-4.67D2 P3-5.67D2 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings L6-33E9ZD ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
