L9-38P9Z Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 31.69"; Outer Diameter: 43.31"; Width (Thickness): 3.54";

L9-38P9Z
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number L9-38P9Z
Weight(lbs) 290

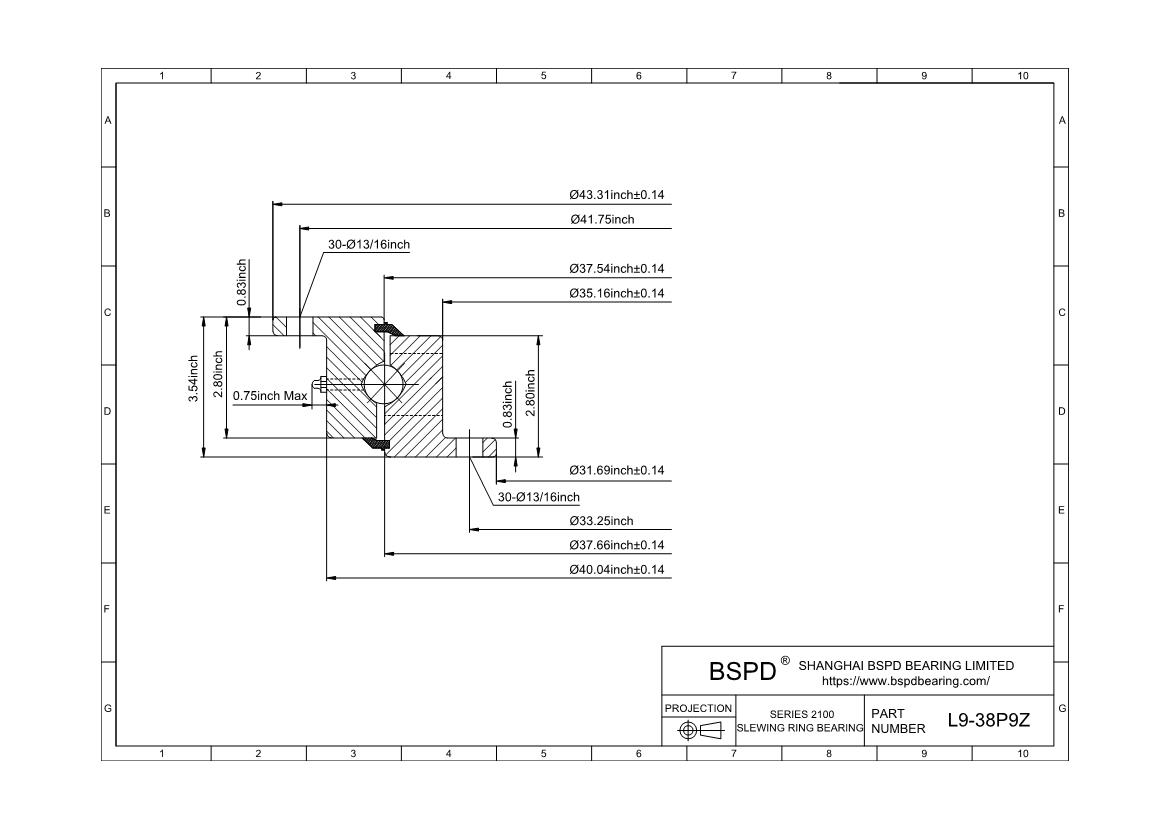

Outline Dimensions(inches)
OD 43.31
ID 31.69
IO 37.66
OI 37.54
IE 35.16
OE 40.04
Mounting Holes
OBC 41.75
NO.Holes OBC 30
IBC 33.25
NO.Holes IBC 30
Gear Data
PD
DP20 Stub
NO of Teeth
Max.Tangential Toothload
Mating Pinions P2.5-5.6D2
P2.5-6.8D2
L9-38P9Z
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
