M4-12P4Z Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 9.3"; Outer Diameter: 15.9"; Width (Thickness): 1.65";

M4-12P4Z
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number M4-12P4Z
Thrust Fifht Wheel 1650
Weight(lbs) 24

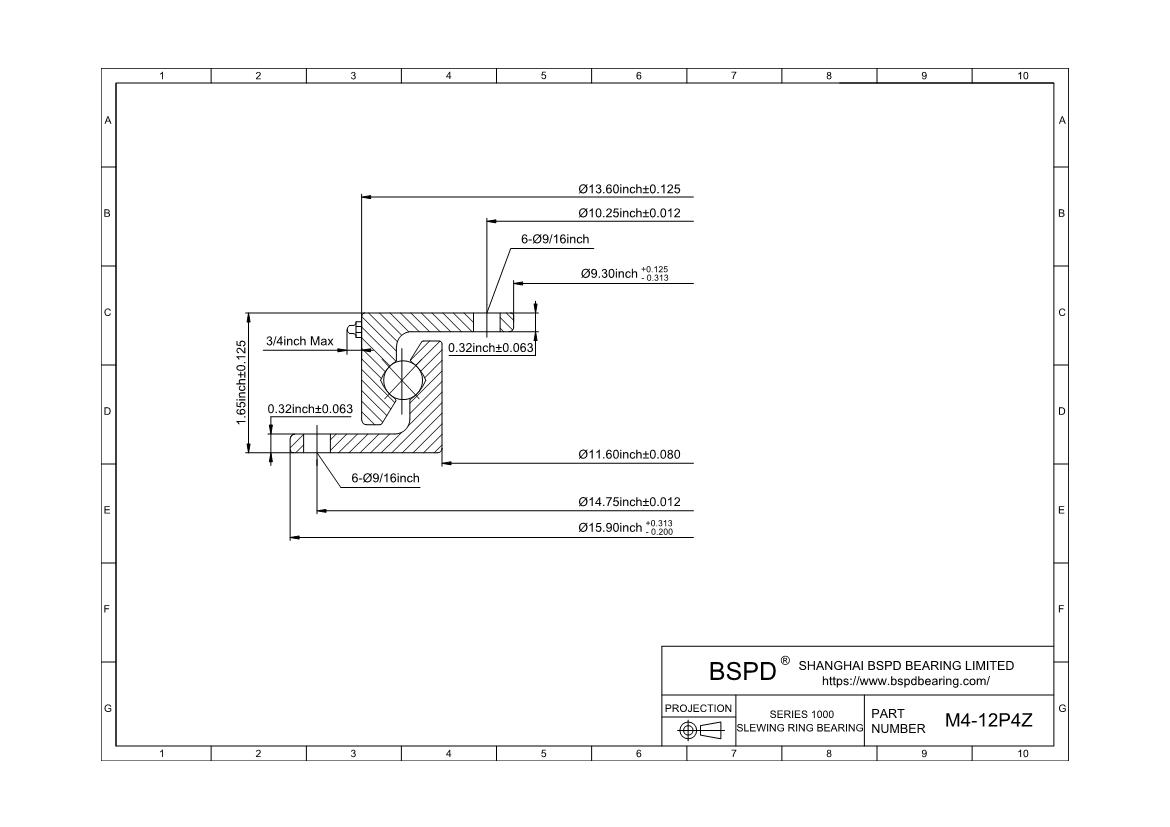

Outline Dimensions(inches)
OD 15.9
ID 9.3
IO 13.6
OI 11.6
HT 1.65
A 0.32
Mounting Holes
OBC 14.75
IBC 10.75
DIA 9/16
Holes Per Race 6
M4-12P4Z
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
