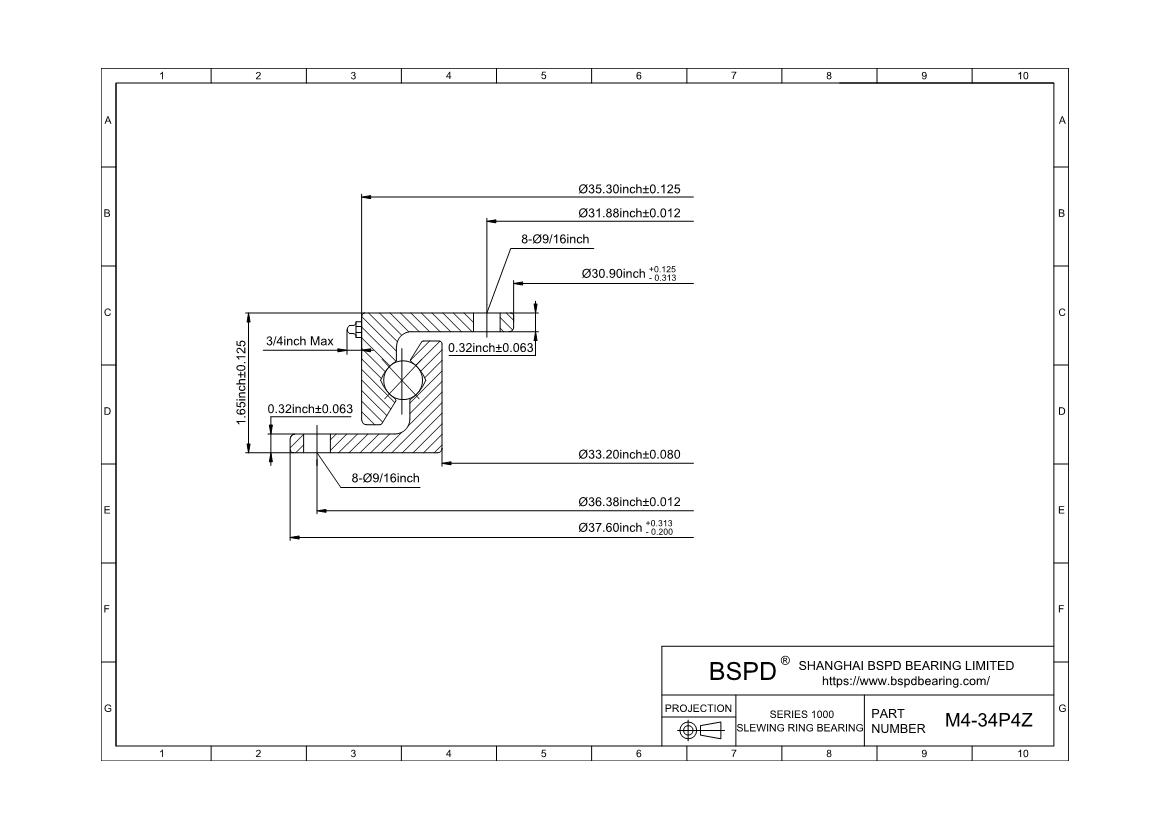

M4-34P4Z
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 30.9"； Outer Diameter: 37.6"； Width (Thickness): 1.65";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M4-34P4Z |
| Thrust Fifht Wheel | 6600 |
| Weight(lbs) | 66 |
| Outline Dimensions(inches) | |
| OD | 37.6 |
| ID | 30.9 |
| IO | 35.3 |
| OI | 33.2 |
| HT | 1.65 |
| A | 0.32 |
| Mounting Holes | |
| OBC | 36.38 |
| IBC | 31.88 |
| DIA | 9/16 |
| Holes Per Race | 8 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M4-34P4Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
