M5-36P1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 34.7"； Outer Diameter: 40.0"； Width (Thickness): 3.15";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M5-36P1 |
| Thrust Fifht Wheel | 18000 |
| Weight(lbs) | 110 |

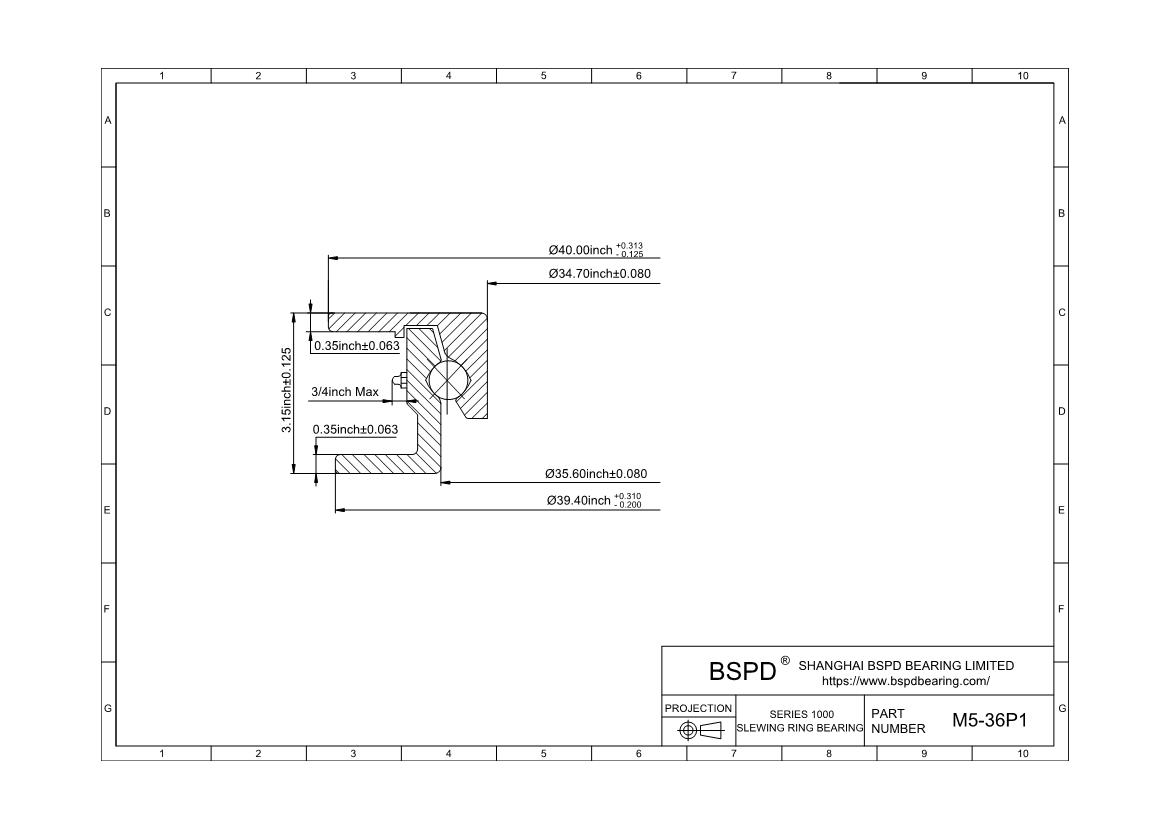

| Outline Dimensions(inches) | |
| OD | 40 |
| ID | 34.7 |
| IO | 39.4 |
| OI | 35.6 |
| HT | 3.15 |
| A | 0.35 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M5-36P1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
