M7-39P1Z
Inch Size Slewing Rings

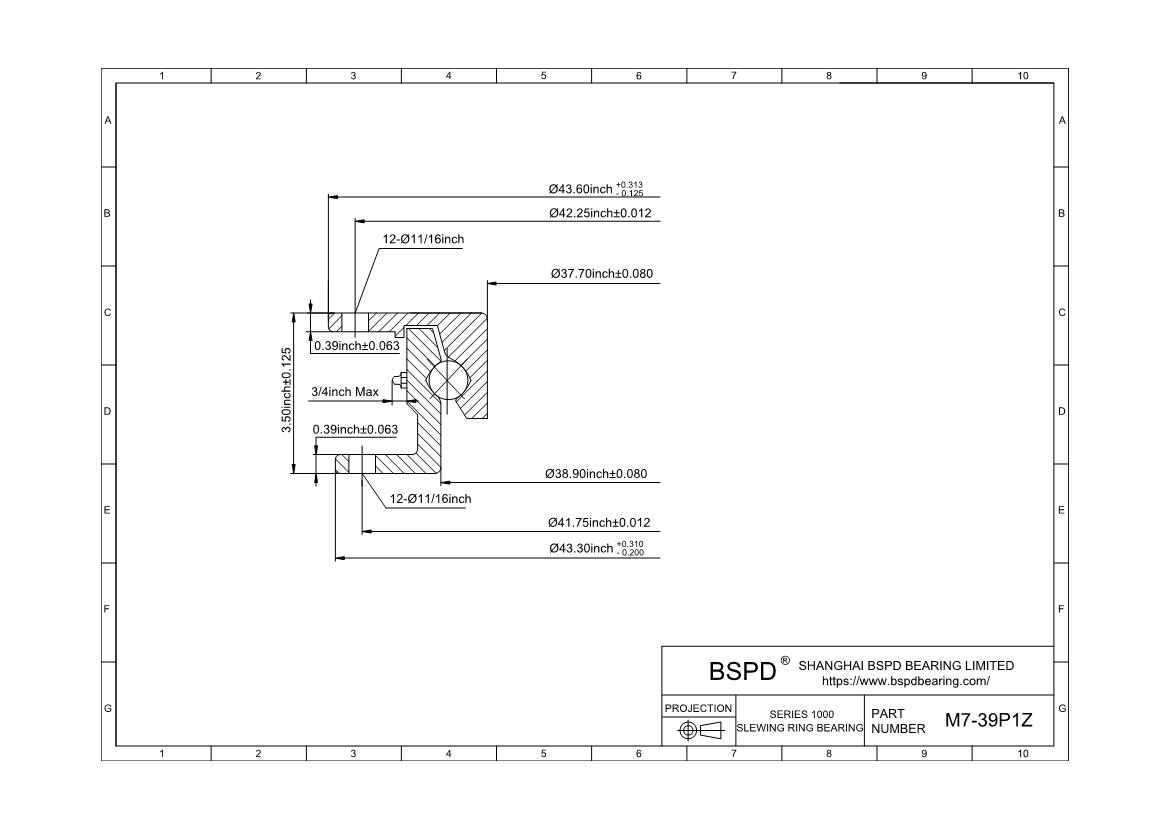

Dimensions: Bore (Inner) Diameter: 37.7"； Outer Diameter: 43.6"； Width (Thickness): 3.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | M7-39P1Z |
| Thrust Fifht Wheel | 30800 |
| Weight(lbs) | 163 |
| Outline Dimensions(inches) | |
| OD | 43.6 |
| ID | 37.7 |
| IO | 43.3 |
| OI | 38.9 |
| HT | 3.5 |
| A | 0.39 |
| Mounting Holes | |
| OBC | 42.25 |
| IBC | 41.75 |
| DIA | 11/16 |
| Holes Per Race | 12 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings M7-39P1Z ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
