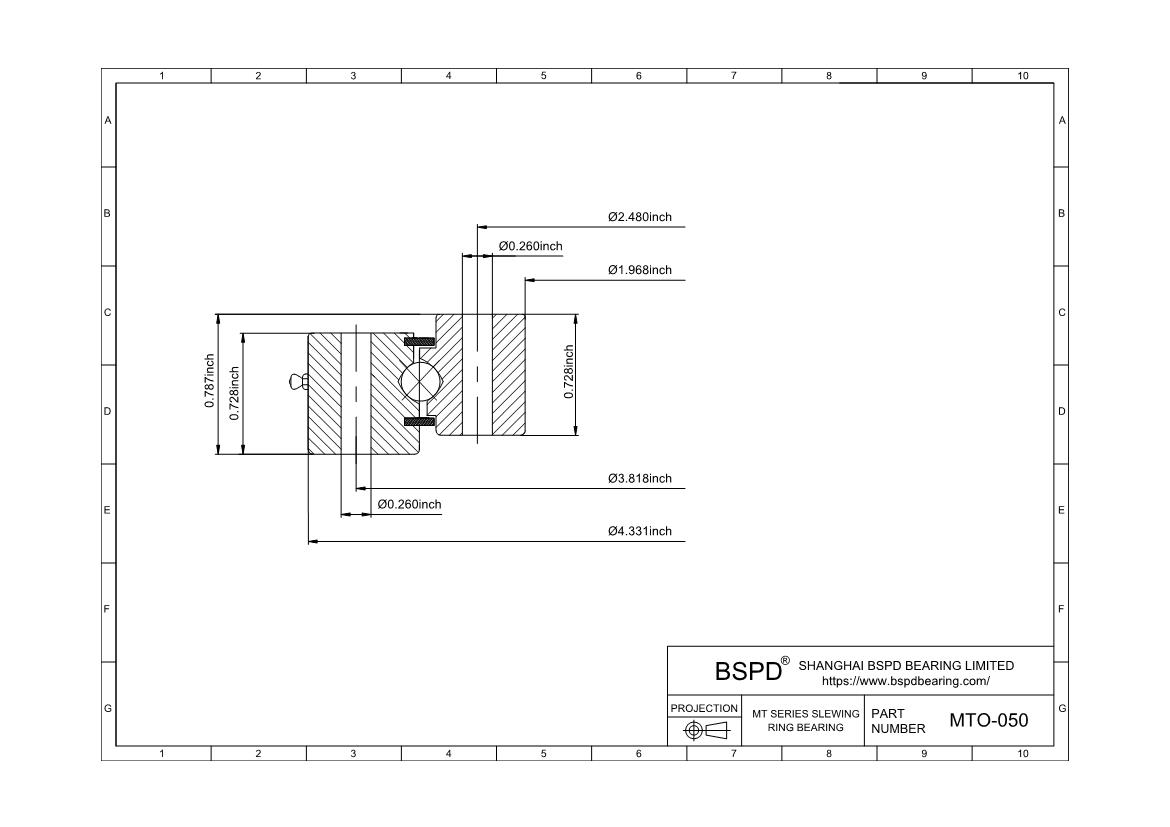

MTO-050
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1.968"； Outer Diameter: 4.331"； Width (Thickness): 0.787";
Product Attributes
| Specifications | |
| Part Number | MTO-050 |
| Moment Load Rating (Crm) | 675ft-lbs | 3.013KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 4.331" | 110.01mm |
| Inside Diameter of Inner Ring (di) | 1.968" | 49.99mm |
| Height of Overall Bearing Assembly (H) | 0.787" | 19.99mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 0.728" | 18.49mm |
| Approximate Weight (lbs) | 2lbs | 0.907KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 3.818" | 96.98mm |
| Number Holes in Outer Ring (no) | 8 |
| Size of Hole in Outer Ring (Bo) | 0.26 |
| Bolt Circle in Inner Ring (Li) | 2.480" | 62.99mm |
| Number Holes in Inner Ring (ni) | 8 |
| Size of Hole in Inner Ring (Bi) | 0.26 |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Tooth form | - |
| Pitch diameter of gear(D2) | - |
| Diametral pitch(Pd) | - |
| Number of gear teeth(z2) | - |
| Face width of gear teethαb2) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTO-050 ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
