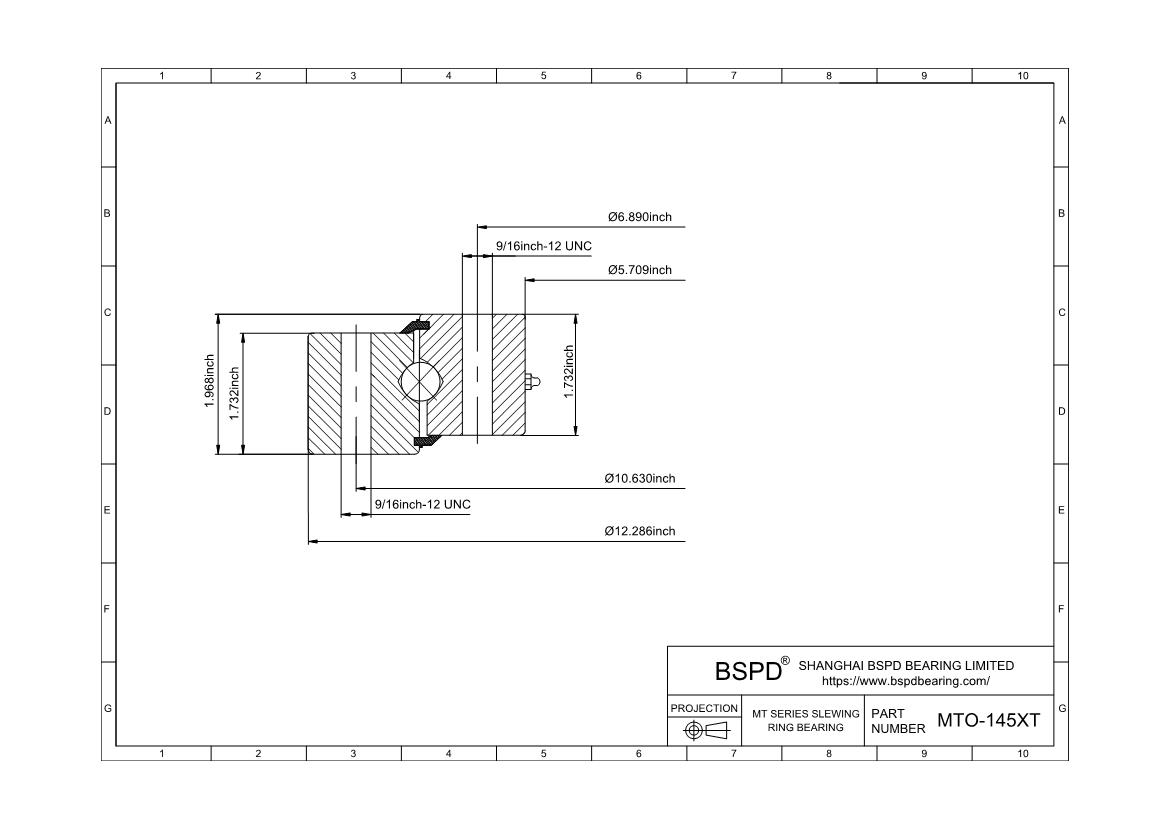

MTO-145XT
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 5.709"； Outer Diameter: 12.286"； Width (Thickness): 1.968";
Slewing Bearings of similar size
Product Attributes
| Specifications | |
| Part Number | MTO-145XT |
| Moment Load Rating (Crm) | 30,600ft-lbs | 136.607KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 12.286" | 312.06mm |
| Inside Diameter of Inner Ring (di) | 5.709" | 145.01mm |
| Height of Overall Bearing Assembly (H) | 1.968" | 49.99mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 1.732" | 43.99mm |
| Approximate Weight (lbs) | 41lbs | 18.597KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 10.630" | 270mm |
| Number Holes in Outer Ring (no) | 16 |
| Size of Hole in Outer Ring (Bo) | 9/16-12 UNC |
| Bolt Circle in Inner Ring (Li) | 6.890" | 175.01mm |
| Number Holes in Inner Ring (ni) | 16 |
| Size of Hole in Inner Ring (Bi) | 9/16-12 UNC |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Tooth form | - |
| Pitch diameter of gear(D2) | - |
| Diametral pitch(Pd) | - |
| Number of gear teeth(z2) | - |
| Face width of gear teethαb2) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTO-145XT ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
REQUEST FOR QUOTE
- Fast Delivery √
- Best Quality √
- Good Price √
