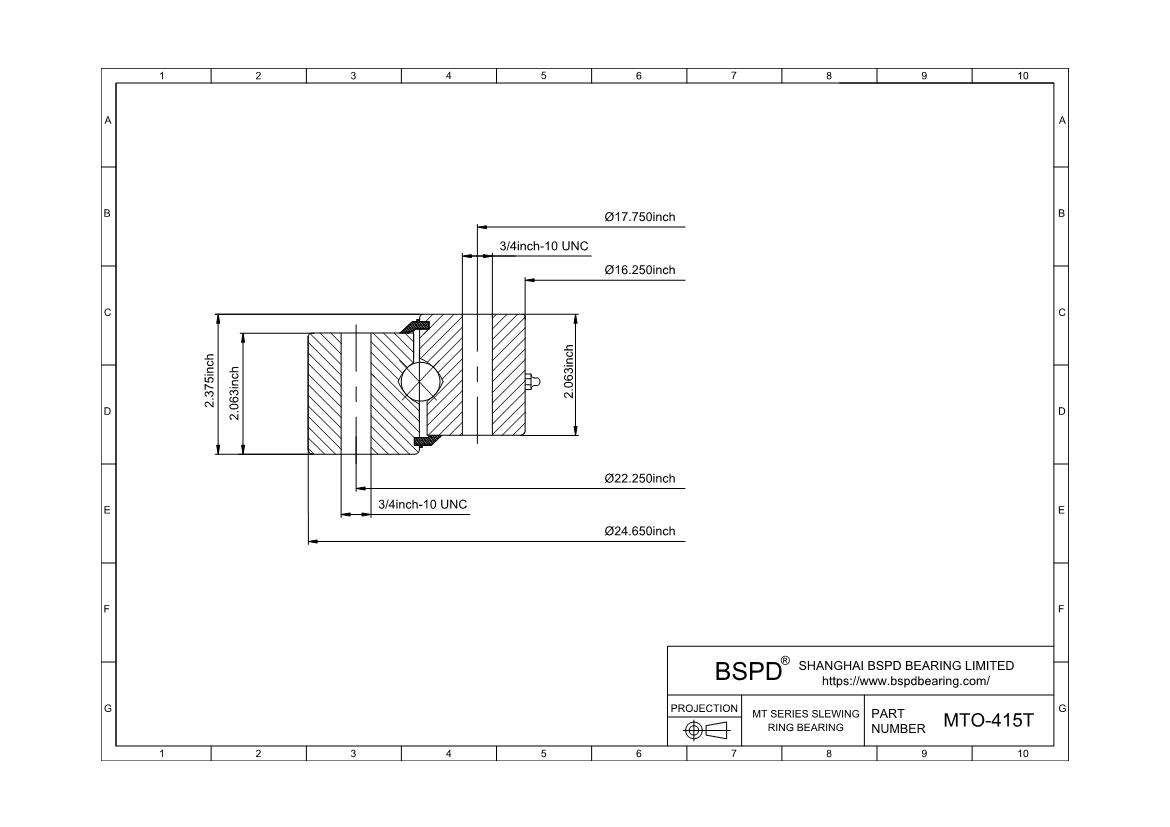

MTO-415T
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 16.25"； Outer Diameter: 24.65"； Width (Thickness): 2.375";
Product Attributes
| Specifications | |
| Part Number | MTO-415T |
| Moment Load Rating (Crm) | 159,000ft-lbs | 709.821KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 24.650" | 626.11mm |
| Inside Diameter of Inner Ring (di) | 16.250" | 412.75mm |
| Height of Overall Bearing Assembly (H) | 2.375" | 60.33mm |
| Height of Inner Ring (Hi)/Height of Outer Ring (Ho) | 2.063" | 52.4mm |
| Approximate Weight (lbs) | 145lbs | 65.771KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 22.250" | 565.15mm |
| Number Holes in Outer Ring (no) | 16 |
| Size of Hole in Outer Ring (Bo) | 3/4-10 UNC |
| Bolt Circle in Inner Ring (Li) | 17.75" | 450.85mm |
| Number Holes in Inner Ring (ni) | 20 |
| Size of Hole in Inner Ring (Bi) | 3/4-10 UNC |
| Gear Data | |
| Pressure Angle of Gear Teeth (α) | - |
| Tooth form | - |
| Pitch diameter of gear(D2) | - |
| Diametral pitch(Pd) | - |
| Number of gear teeth(z2) | - |
| Face width of gear teethαb2) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings MTO-415T ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
