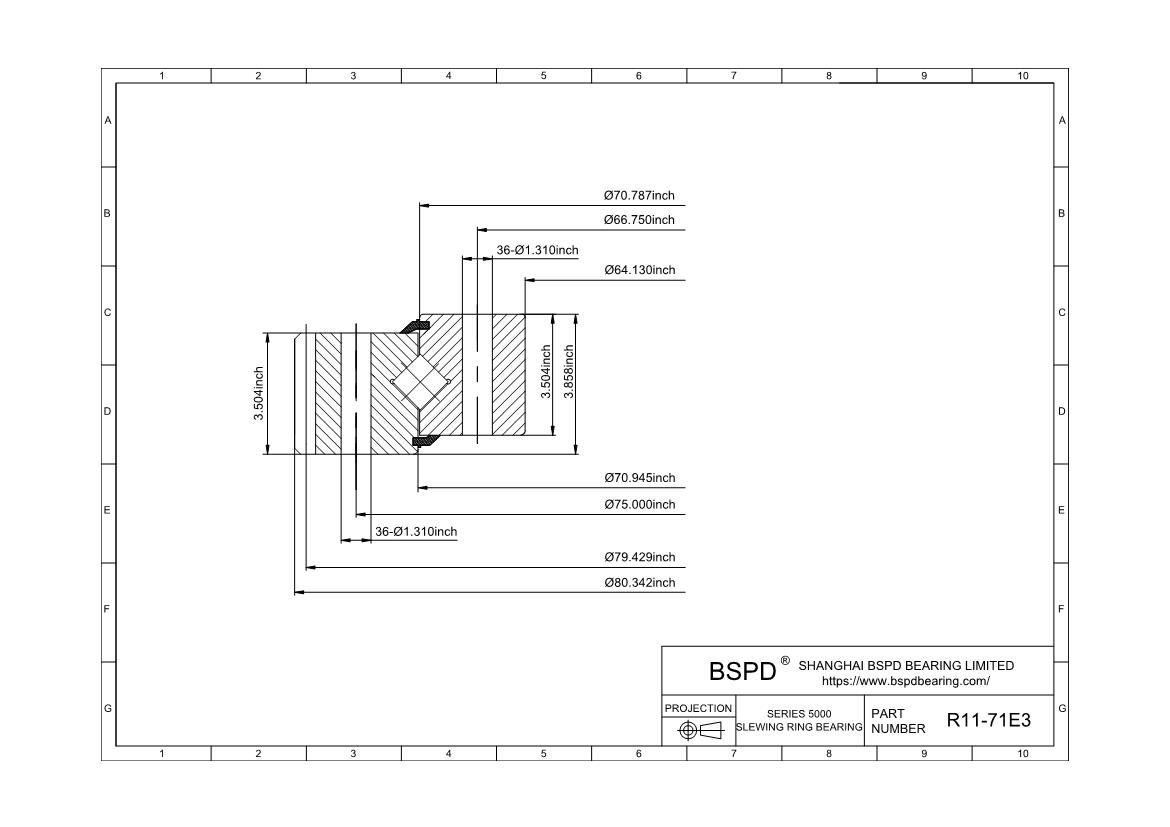

R11-71E3
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 64.13"； Outer Diameter: 80.342"； Width (Thickness): 3.858";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | R11-71E3 |
| Raceway Moment (ft-lbs) | 1733300 |
| Compressive Thrust(lbs) | 1207300 |
| Weight(lbs) | 1580 |
| Outline Dimensions(inches) | |
| OD | 80.342 |
| ID | 64.13 |
| OI | 70.945 |
| IO | 70.787 |
| HT | 3.858 |
| OH | 3.504 |
| IH | 3.504 |
| PD | 79.429 |
| DP | 1.75 |
| Mounting Holes | |
| OBC | 75.000 |
| OU | 1.31 |
| No of OBC Holes | 36 |
| IBC | 66.750 |
| IU | 1.31 |
| No of IBC Holes | 36 |
| Gear Data | |
| Tooth From 20 | Stub |
| Gear Hardness(BHN) | 250-300 |
| F | 3.504 |
| NO of Teeth | 139 |
| Max.allow tang.tooth load(lbs) | 36000 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings R11-71E3 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
