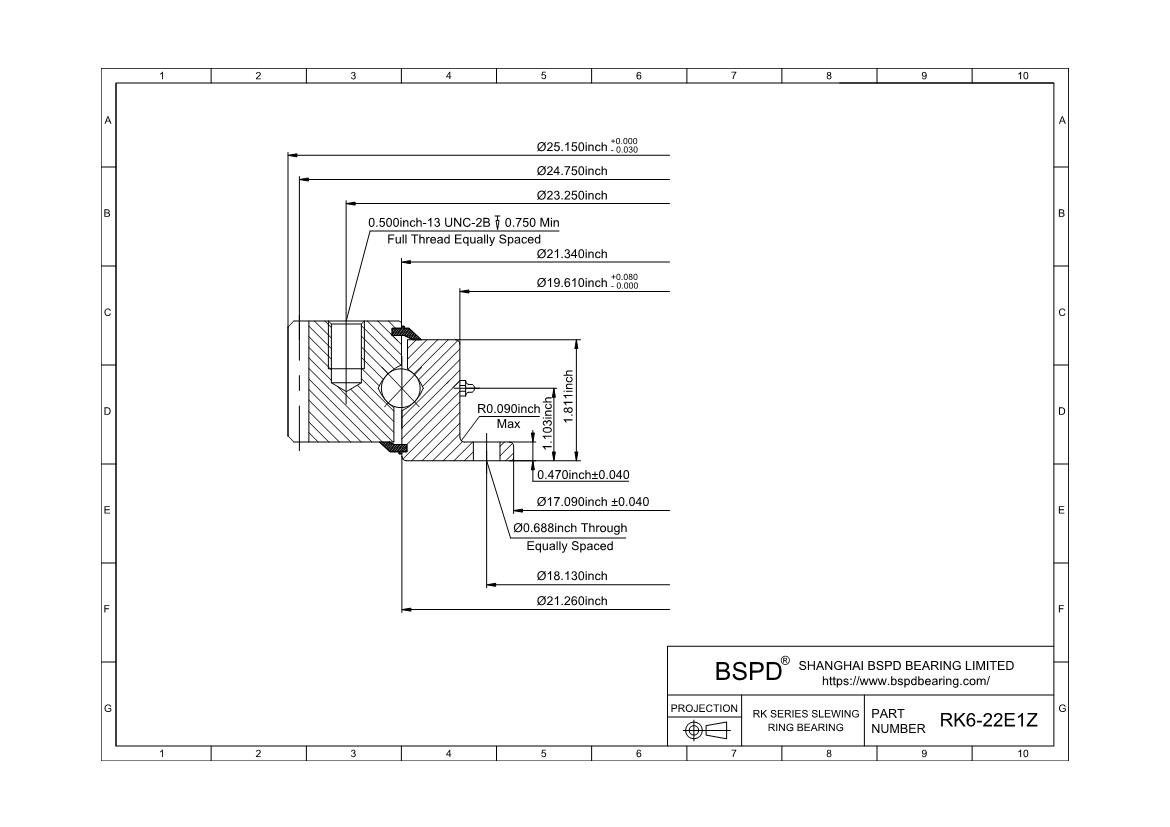

RK6-22E1Z
Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 17.09"； Outer Diameter: 25.15"； Width (Thickness): ;
Product Attributes
| Specifications | |
| Part Number | RK6-22E1Z |
| Maximum Allowable Gear Tooth Load (Fz) | 5650lbs | 25.223KN |
| Moment Load Rating (Crm) | 37700ft-lbs | 168.304KN |
| Bearing Types | Slewing Ring Bearing |
| Outline Dimensions and Weight | |
| Outside Diameter of Outer Ring (Do) | 25.15" | 638.81mm |
| Outside Diameter of Outer Ring (Do) Tolerance | -0.03 " | -0.76mm |
| Inside Diameter of Inner Ring (di) | 17.09 " | 434.09mm |
| Inside Diameter of Inner Ring (di) Tolerance | ±.040 " | ±1.02mm |
| External Diameter on Outer Ring (Dr) | - |
| External Diameter on Outer Ring (Dr) Tolerance | - |
| Internal Diameter on Outer Ring (Di) | 21.34 " | 542.04mm |
| External Diameter on Inner Ring (do) | 21.26 " | 540mm |
| Internal Diameter on Inner Ring (dr) | 19.61 " | 498.09mm |
| Internal Diameter on Inner Ring (dr) Tolerance | +0.08 " | +2.03mm |
| Approximate Weight (lb) | 96 lbs | 43.545KG |
| Mounting Holes | |
| Bolt Circle in Outer Ring (Lo) | 23.25 " | 590.55mm |
| Number Holes in Outer Ring (no) | 12 |
| Bolt Circle in Inner Ring (Li) | 18.13 " | 460.5mm |
| Number Holes in Inner Ring (ni) | 15 |
| Gear Data | |
| Pitch Diameter of Gear (D2) | 24.75 " | 628.65mm |
| Diametral Pitch (Pd) | 4 |
| Number of Gear Teeth (z2) | 99 |
| Pressure Angle of Gear Teeth (α) | 20 º |
| Mating Pinions | 39200001 39200002 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings RK6-22E1Z ? Kaydon Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
