VI140326-V INA Slewing Bearings

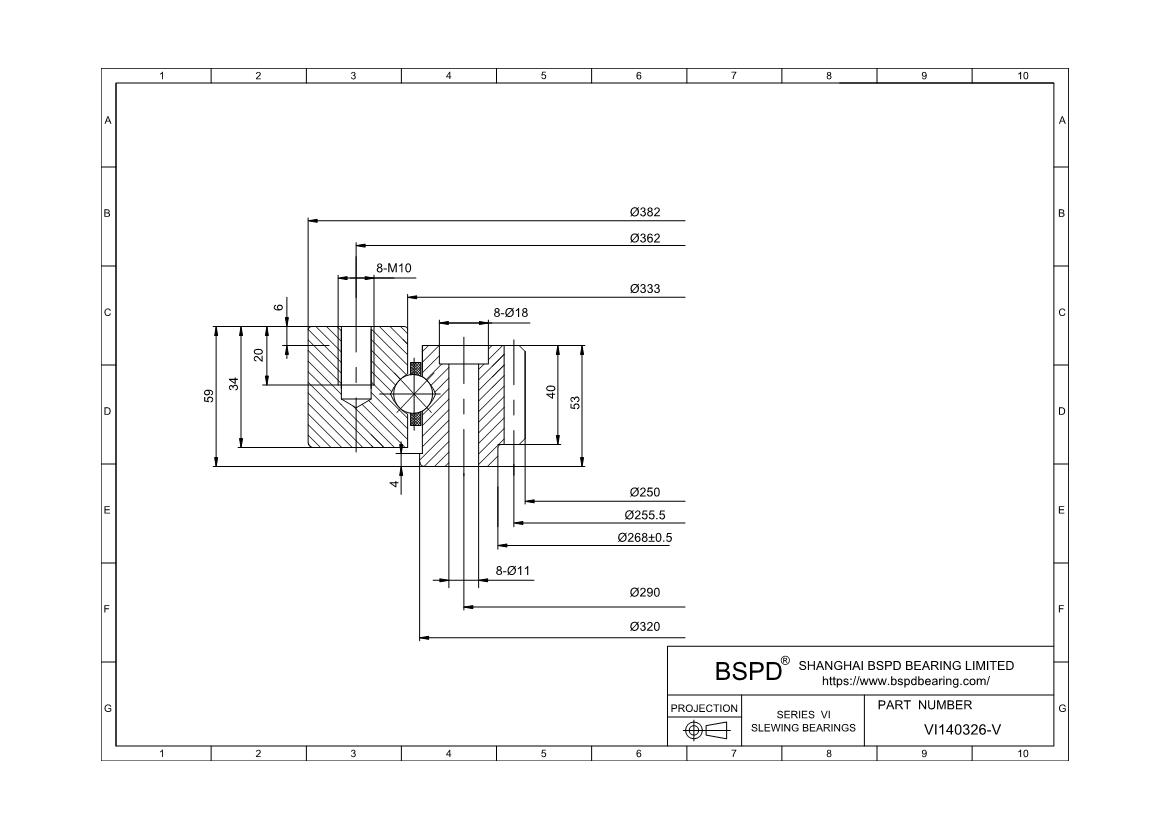

Dimensions: Bore (Inner) Diameter: 250 mm; Outer Diameter: 382 mm; Width (Thickness): 59 mm;

VI140326-V
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number VI140326-V
di 250 mm
Da 382 mm
b 40 mm
DaZT -
Di 333 mm
d0 255,5 mm
da 320 mm
daZT -
dB -
H 59 mm
h -
La 362 mm
Li 290 mm
m 3,5 mm
na 8
ni 8
T -
t -
u +
Number of teeth(z) 73
weight(w) 18 kg
Maximum permissible radial load against friction lock(Frper) 22400 N
Maximum permissible tooth force (dedendum fatigue strength) Fznorm 10800 N
Max. permissible tooth force against tooth fracture in dedendum(Fzmax) 16100 N
Basic dynamic load rating, axial(Ca) 82000 N
Basic static load rating, axial(C0a) 395000 N
Basic dynamic load rating, radial(Cr) 74000 N
Basic static load rating, radial(C0r) 158000 N
Min. radial bearing clearance 0,03
Maximum radial bearing clearance 0,08
Min. axial tilting clearance 0,08
Maximum axial tilting clearance 0,18
Taper type lubrication nipples, DIN 71412-A M10x1, spaced uniformly on circumference and partially recessed -
Lip seals on both spides NO
VI140326-V
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
