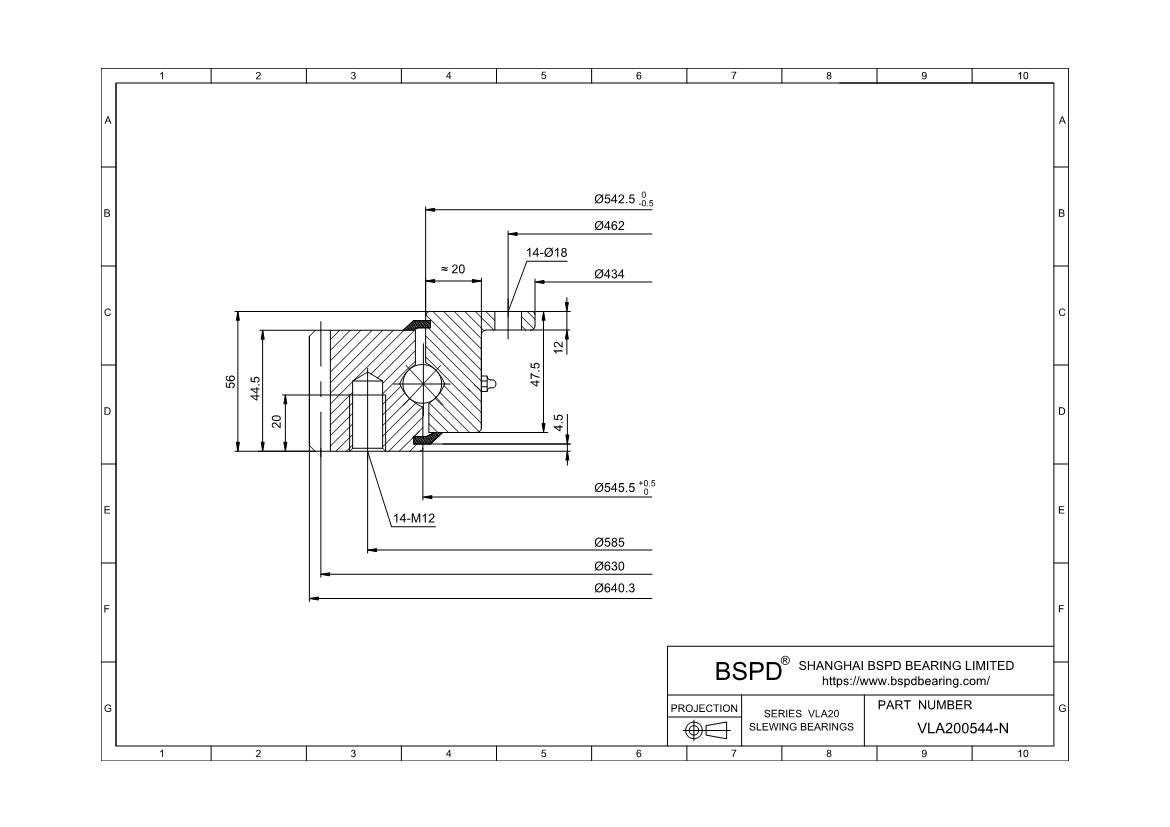

VLA200544-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 434 mm Tolerance: +0,5/0； Outer Diameter: 640,3 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLA200544-N |
| di | 434 mm Tolerance: +0,5/0 |
| Da | 640,3 mm |
| Di | 545,5 mm |
| DiZT | 547 mm |
| d0 | 630 mm |
| da | 542,5 mm Tolerance: 0/-0,5 |
| diZT | 436 mm |
| H | 56 mm |
| La | 585 mm |
| Li | 462 mm |
| Tooth modulus | 6 mm |
| Number of fixing holes in outer ring(na) | 14 |
| Number of fixing holes in inner ring(ni) | 14 |
| Number of teeth(z) | 105 |
| weight(w) | 41,5 kg |
| Maximum permissible radial load against friction lock(Frper) | 57800 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 21300 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 31500 N |
| Basic dynamic load rating, axial(Ca) | 154000 N |
| Basic static load rating, axial(C0a) | 385000 N |
| Basic dynamic load rating, radial(Cr) | 139000 N |
| Basic static load rating, radial(C0r) | 144000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | Y |
Print PDF
Request a 3D CAD Model
