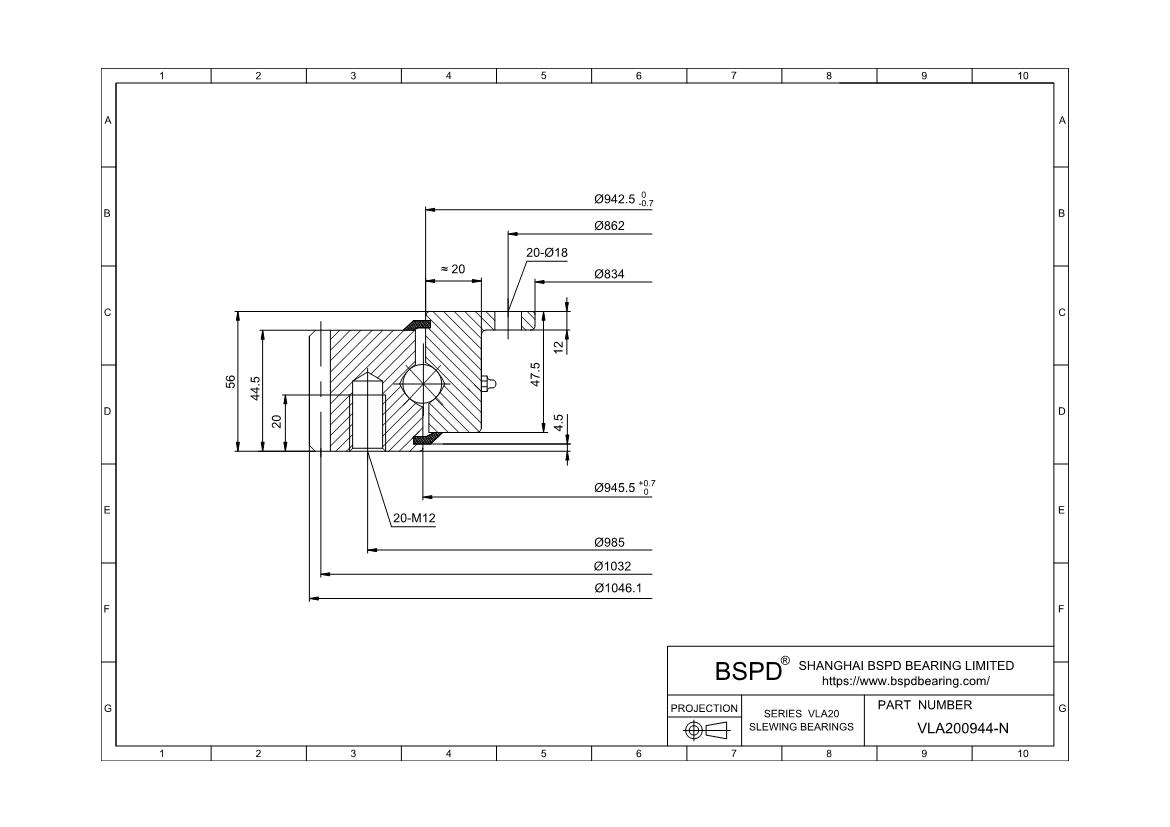

VLA200944-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 834 mm Tolerance: +0,7/0； Outer Diameter: 1046,1 mm； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLA200944-N |
| di | 834 mm Tolerance: +0,7/0 |
| Da | 1046,1 mm |
| Di | 945,5 mm Tolerance: +0,7/0 |
| DiZT | 947 mm |
| d0 | 1032 mm |
| da | 942,5 mm Tolerance: 0/-0,7 |
| diZT | 836 mm |
| H | 56 mm |
| La | 985 mm |
| Li | 862 mm |
| Tooth modulus | 8 mm |
| Number of fixing holes in outer ring(na) | 20 |
| Number of fixing holes in inner ring(ni) | 20 |
| Number of teeth(z) | 129 |
| weight(w) | 71,5 kg |
| Maximum permissible radial load against friction lock(Frper) | 82600 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 28300 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 42000 N |
| Basic dynamic load rating, axial(Ca) | 189000 N |
| Basic static load rating, axial(C0a) | 670000 N |
| Basic dynamic load rating, radial(Cr) | 171000 N |
| Basic static load rating, radial(C0r) | 250000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | Y |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VLA200944-N ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
