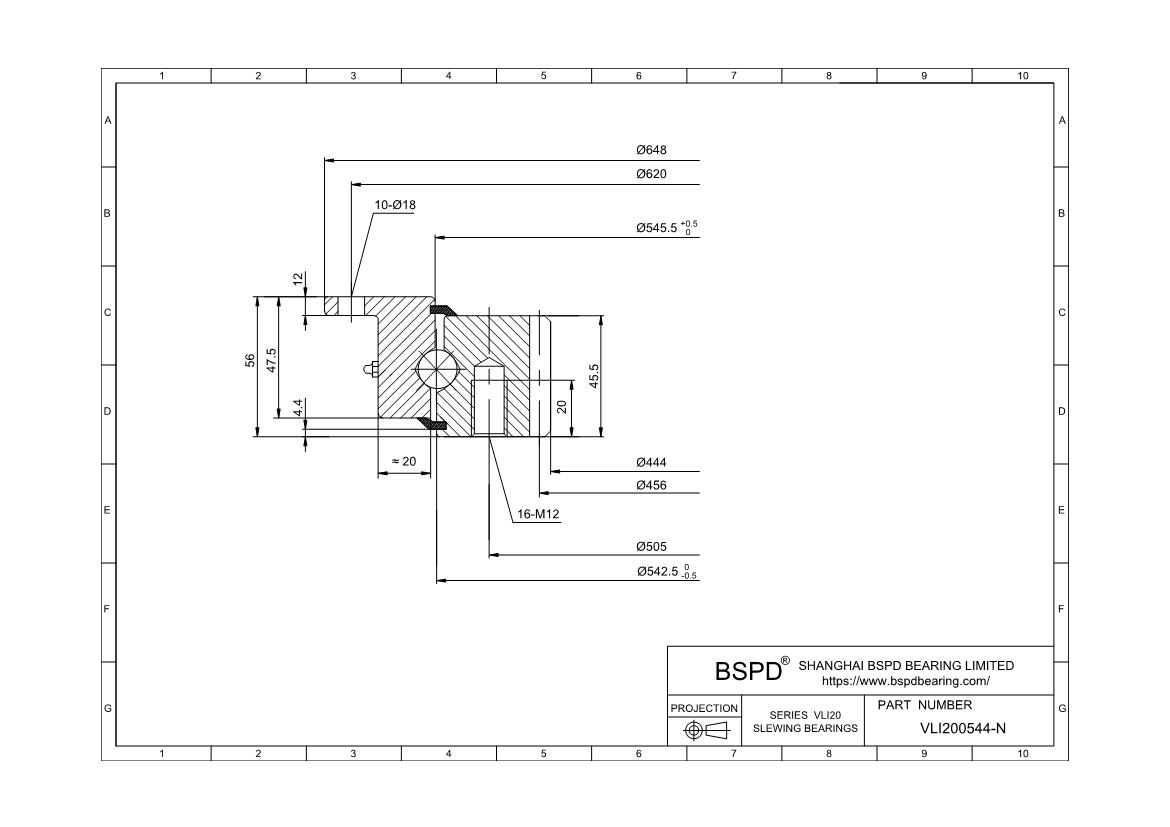

VLI200544-N
INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 444 mm； Outer Diameter: 648 mm Tolerance: 0/-0,5； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VLI200544-N |
| di | 444 mm |
| Da | 648 mm Tolerance: 0/-0,5 |
| DaZT | 646 mm Tolerance: -IT8 |
| Di | 545,5 mm Tolerance: +0,5/0 |
| d0 | 456 mm |
| da | 542,5 mm Tolerance: 0/-0,5 |
| daZT | 541 mm Tolerance: -IT8 |
| H | 56 mm |
| La | 620 mm |
| Li | 505 mm |
| Tooth modulus(m) | 6 mm |
| Number of fixing holes in outer ring(na) | 10 |
| Number of fixing holes in inner ring(ni) | 16 |
| Number of teeth(z) | 76 |
| weight(w) | 38 kg |
| Maximum permissible radial load against friction lock(Frper) | 66100 N |
| Maximum permissible tooth force (dedendum fatigue strength) Fznorm | 23700 N |
| Max. permissible tooth force against tooth fracture in dedendum(Fzmax) | 35000 N |
| Basic dynamic load rating, axial(Ca) | 154000 N |
| Basic static load rating, axial(C0a) | 385000 N |
| Basic dynamic load rating, radial(Cr) | 139000 N |
| Basic static load rating, radial(C0r) | 144000 N |
| Maximum radial bearing clearance | 0,5 |
| Maximum axial tilting clearance | 0,7 |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
| Bearings are also available without holes in the bearing rings | YES |
Print PDF
Request a 3D CAD Model
