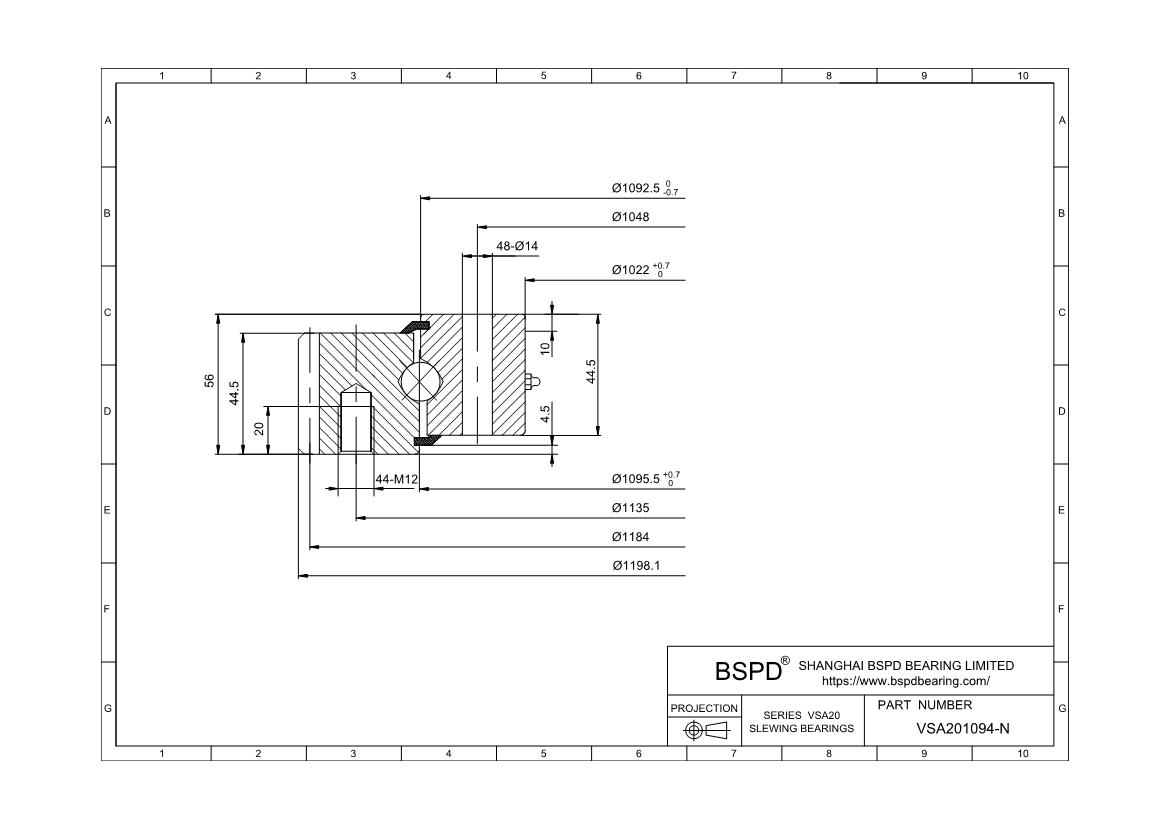

VSA201094-N INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 1022 mm Tolerance: +0,7/0; Outer Diameter: 1198,1 mm; Width (Thickness): 56 mm;

VSA201094-N
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number VSA201094-N
di 1022 mm Tolerance: +0,7/0
Da 1198,1 mm
Di 1095,5 mm Tolerance: +0,7/0
DiZT 1097 mm Tolerance: +IT8
d0 1184 mm
da 1092,5 mm Tolerance: 0/-0,7
diZT 1024 mm Tolerance: +IT8
H 56 mm
La 1135 mm
Li 1048 mm
Tooth modulus 8 mm
Number of fixing holes in outer ring(na) 44
Number of fixing holes in inner ring(ni) 48
Number of teeth(z) 148
weight(w) 91 kg
Maximum permissible radial load against friction lock(Frper) 181700 N
Maximum permissible tooth force (dedendum fatigue strength) Fznorm 28300 N
Max. permissible tooth force against tooth fracture in dedendum(Fzmax) 42000 N
Basic dynamic load rating, axial(Ca) 200000 N
Basic static load rating, axial(C0a) 1760000 N
Basic dynamic load rating, radial(Cr) 181000 N
Basic static load rating, radial(C0r) 800000 N
Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference 4
VSA201094-N
