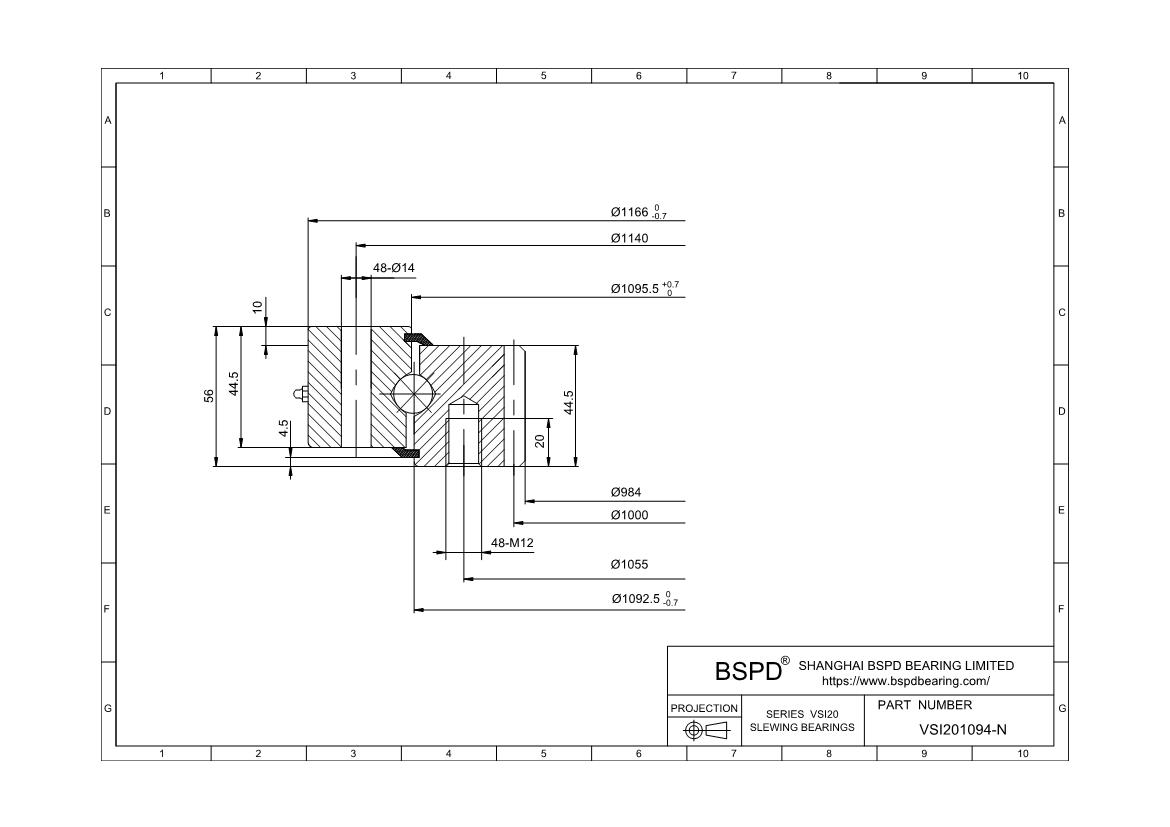

VSI201094-N INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 984 mm; Outer Diameter: 1166 mm Tolerance: 0/-0,7; Width (Thickness): 56 mm;

VSI201094-N
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number VSI201094-N
di 984 mm
Da 1166 mm Tolerance: 0/-0,7
DaZT 1164 mm Tolerance: -IT8
Di 1095,5 mm Tolerance: +0,7/0
d0 1000 mm
da 1092,5 mm Tolerance: 0/-0,7
daZT 1091 mm Tolerance: -IT8
H 56 mm
La 1140 mm
Li 1055 mm
Tooth modulus(m) 8 mm
Number of fixing holes in outer ring(na) 48
Number of fixing holes in inner ring(ni) 48
Number of teeth(z) 125
weight(w) 91 kg
Maximum permissible radial load against friction lock(Frper) 198200 N
Maximum permissible tooth force (dedendum fatigue strength) Fznorm 31400 N
Max. permissible tooth force against tooth fracture in dedendum(Fzmax) 46700 N
Basic dynamic load rating, axial(Ca) 200000 N
Basic static load rating, axial(C0a) 1760000 N
Basic dynamic load rating, radial(Cr) 181000 N
Basic static load rating, radial(C0r) 800000 N
Maximum radial bearing clearance 0,3
Maximum axial tilting clearance 0,53
Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference 4
