VSU200644
INA Slewing Bearings

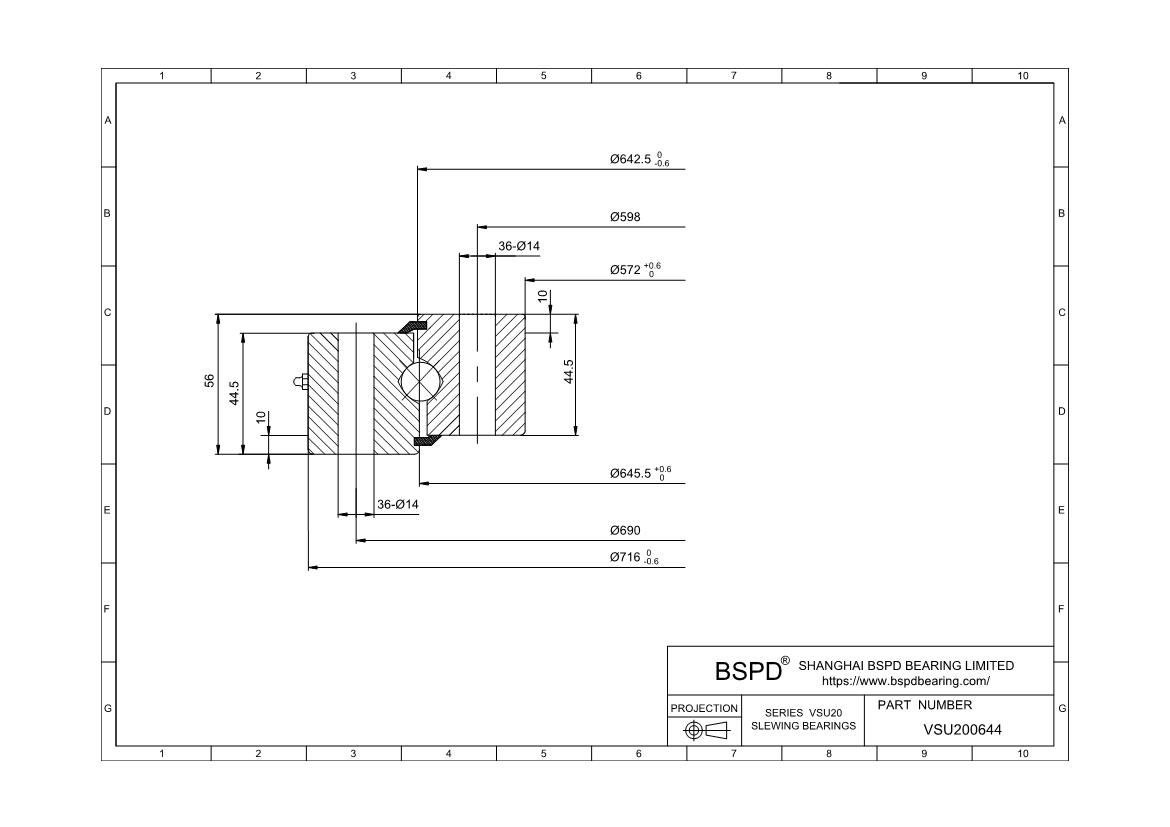

Dimensions: Bore (Inner) Diameter: 572 mm Tolerance: +0,6/0； Outer Diameter: 716 mm Tolerance: 0/-0,6； Width (Thickness): 56 mm;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | VSU200644 |
| di | 572 mm Tolerance: +0,6/0 |
| Da | 716 mm Tolerance: 0/-0,6 |
| DaZT | 714 mm Tolerance: -IT8 |
| Di | 645,5 mm Tolerance: +0,6/0 |
| da | 642,5 mm Tolerance: 0/-0,6 |
| diZT | 574 mm Tolerance: +IT8 |
| H | 56 mm |
| La | 690 mm |
| Li | 598 mm |
| na | 36 |
| ni | 36 |
| weight(w) | 44 kg |
| Maximum permissible radial load against friction lock(Frper) | 148700 N |
| Basic dynamic load rating, axial(Ca) | 164000 N |
| Basic static load rating, axial(C0a) | 1030000 N |
| Basic dynamic load rating, radial(Cr) | 148000 N |
| Basic static load rating, radial(C0r) | 470000 N |
| Taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference | 4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings VSU200644 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
