XU060094
INA Slewing Bearings

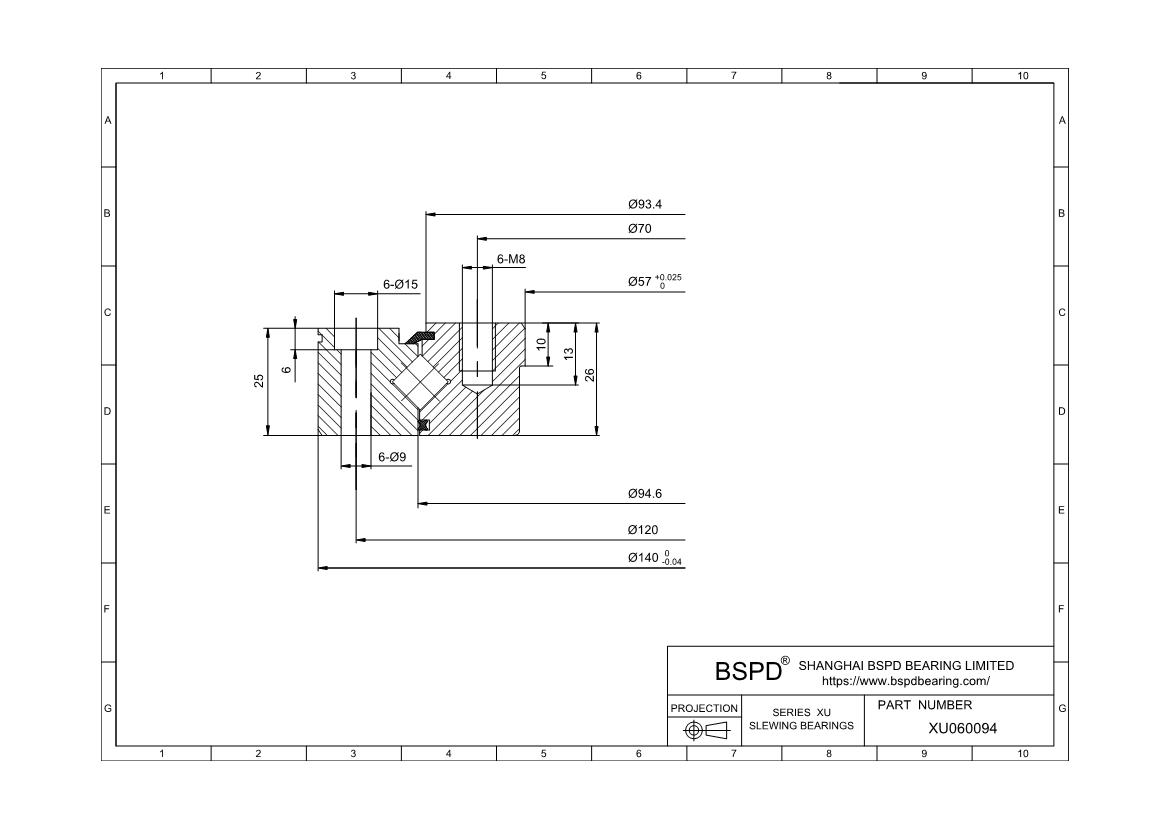

Dimensions: Bore (Inner) Diameter: 57 mm； Outer Diameter: 140 mm； Width (Thickness): 26 mm;
REQUEST FOR QUOTE
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Specifications | |
| Part Number | XU060094 |
| di | 57 mm |
| Da | 140 mm |
| DaZT | 140 mm |
| Di | 94,6 mm |
| da | 93,4 mm |
| dB | 93,4 mm |
| dS | 15 mm |
| H | 26 mm |
| h | 25 mm |
| La | 120 mm |
| Li | 70 mm |
| Number of fixing holes in outer ring(na) | 6 |
| Number of fixing holes in inner ring(ni) | 6 |
| tS | 6 mm |
| weight(w) | 2.4 kg |
| Maximum permissible radial load against friction lock(Frper) | 9200 N |
| Basic dynamic load rating, axial(Ca) | 30500 N |
| Basic static load rating, axial(C0a) | 52000 N |
| Basic dynamic load rating, radial(Cr) | 21800 N |
| Basic static load rating, radial(C0r) | 25500 N |
| Bearing clearance: preload(VSPmin) | 0,005 |
| Bearing clearance: preload(VSPmax) | 0,008 |
| With lip seal and special seal | |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings XU060094 ? INA Slewing Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
