XU160405 INA Slewing Bearings
Dimensions: Bore (Inner) Diameter: 336 mm; Outer Diameter: 474 mm; Width (Thickness): 46 mm;

XU160405
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number XU160405
di 336 mm
Da 474 mm

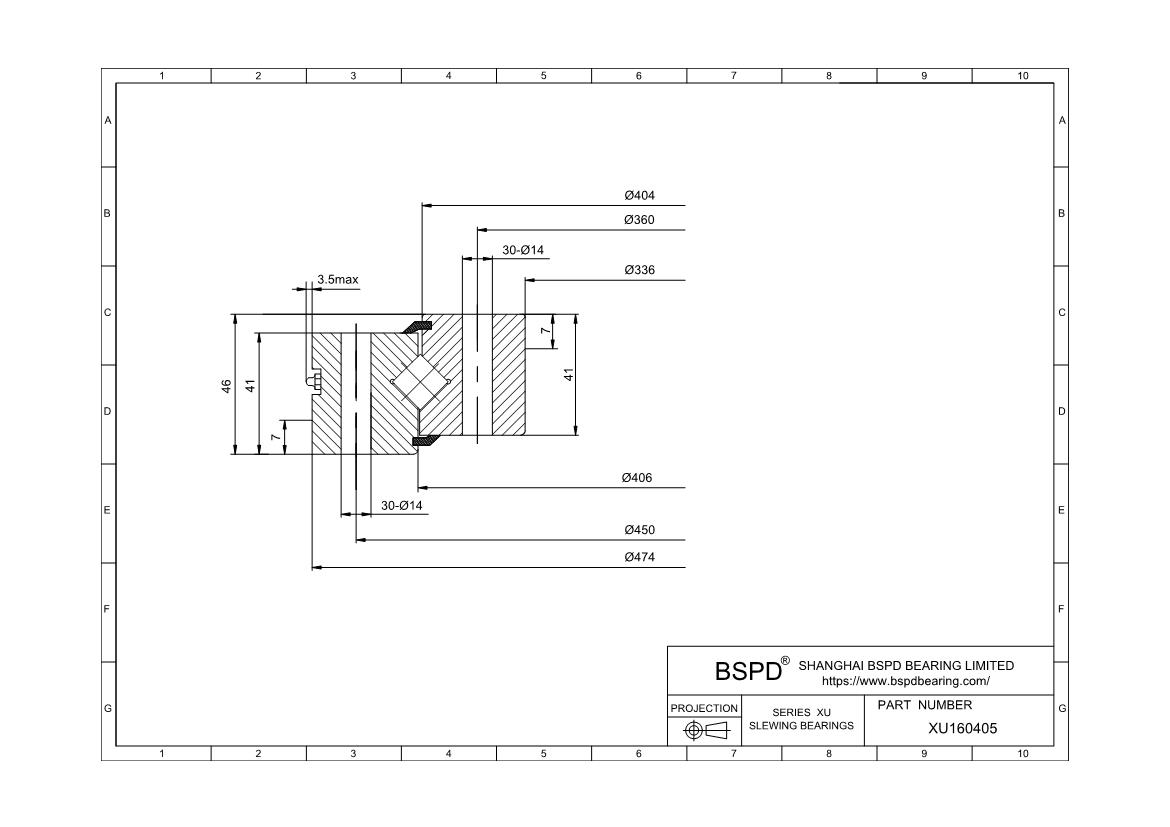

DaZT 472 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: -IT8
Di 406 mm
da 404 mm
dB 14 mm
dS 338 mm Valpid for bearings with centring (suffix ZT) Centring lengths (T, t) (see dimension drawing) Tolerance: +IT8
H 46 mm
h 41 mm
La 450 mm
Li 360 mm
Number of fixing holes in outer ring(na) 30
Number of fixing holes in inner ring(ni) 30
tS 7 mm
weight(w) 25 kg
Maximum permissible radial load against friction lock(Frper) 123900 N
Basic dynamic load rating, axial(Ca) 255000 N
Basic static load rating, axial(C0a) 630000 N
Basic dynamic load rating, radial(Cr) 181000 N
Basic static load rating, radial(C0r) 310000 N
Bearing clearance: preload(VSPmin)
Bearing clearance: preload(VSPmax) 0,02
With lip seal and special seal
